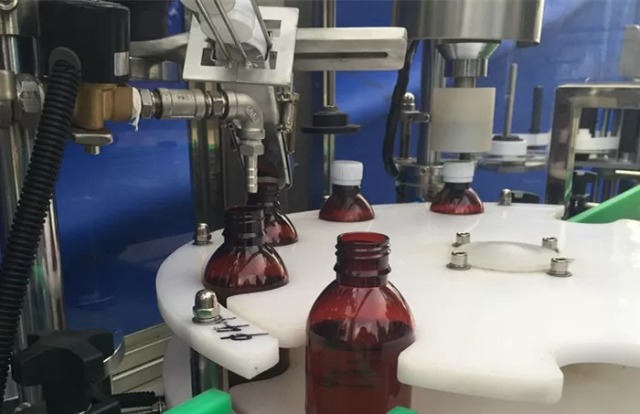

Pharmec pharmaceutical syrup filling machines and oral liquid filling lines are designed for accurate and efficient filling of syrups and other liquid pharmaceutical products into bottles. The complete line can integrate filling, capping and labeling, with flexible configurations for different bottle sizes, filling volumes and production capacities.
Pharmec pharmaceutical syrup filling machines and oral liquid filling lines are designed for accurate and efficient filling of syrups, oral liquids, tinctures, health products and other liquid formulations into bottles.
The complete syrup filling line can integrate bottle feeding, bottle washing, filling, capping and labeling into one continuous production process. Individual machines can also be used independently according to your production requirements.
Pharmec pharmaceutical syrup filling machines are designed for reliable and accurate filling of pharmaceutical and nutritional liquid products. The filling system can be configured according to the product viscosity, filling volume and required production capacity.
Depending on the production requirements, the line can use a stainless steel plunger pump or peristaltic pump for accurate filling and convenient adjustment of filling volume.
A typical Pharmec oral liquid and syrup filling line can include:
| Model | PT-OL | PT-SL |
| Bottle volume | 5～25ml | 30 ~ 1000ml |
| Productivity | 60～350 BPM | 40 ~ 120 BPM |
| Air Consumption | 10 m³/h, 0.3~0.4 Mpa | |
| Water Consumption | 0.6 ~ 1T/h | |
| Power | 4kw, 380V, 50Hz, Ph-3 | |
| Weight | 5000kg | 2000kg |
| Dimension | 9500*2100*2400mm | 7500*1350*1730mm |
Pharmec can customize the syrup filling machine and complete oral liquid filling line according to your URS, bottle size, filling volume, product characteristics, required production capacity and plant layout.
From individual filling machines to complete automated production lines, Pharmec provides equipment selection, line integration, installation support and after-sales service.
Send us your product details, bottle specifications, filling volume and required production capacity. Our engineers can recommend a suitable pharmaceutical syrup filling machine or complete oral liquid filling line based on your requirements.
